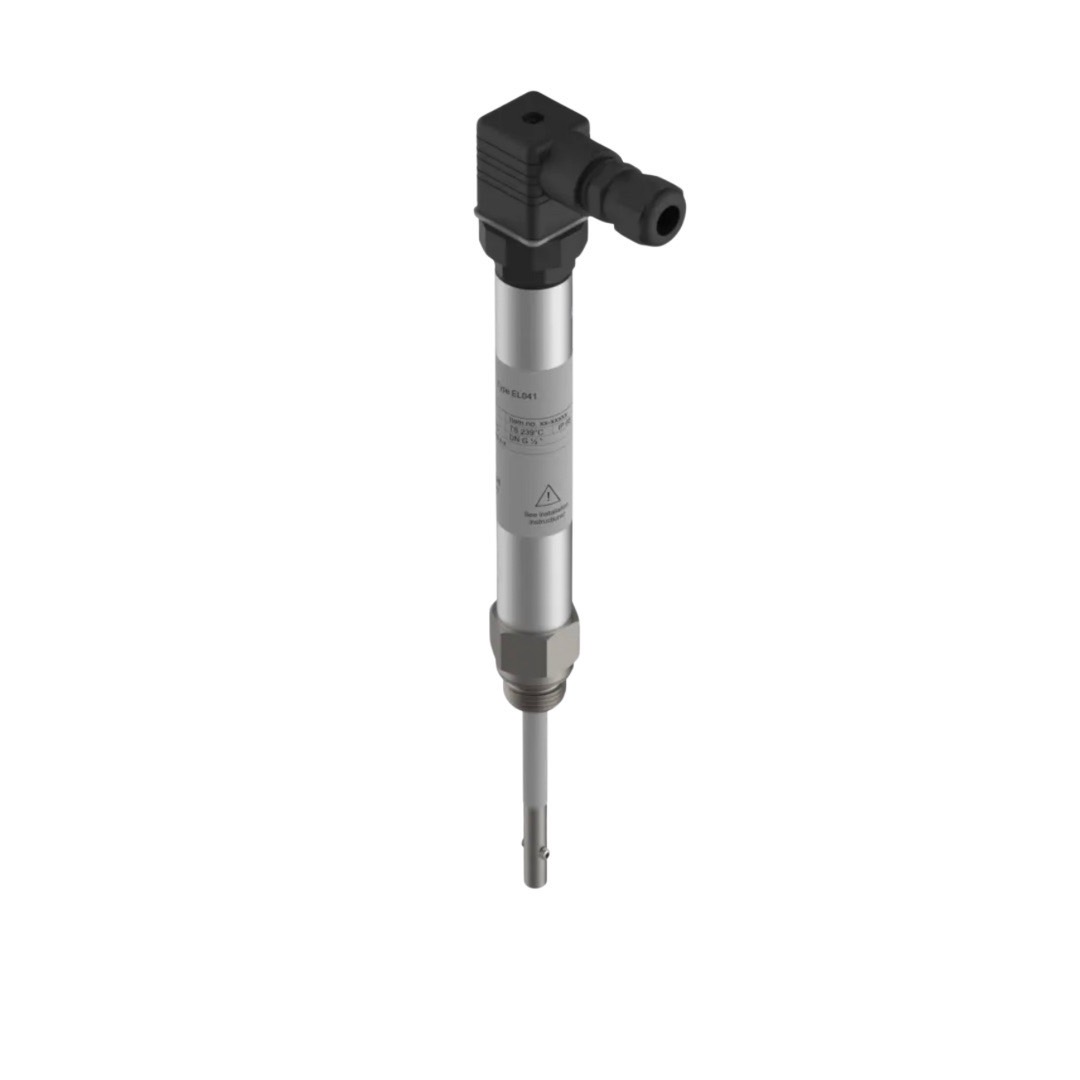

lgema Level probe EL041-B

Application and function The level probe EL041 / EL041-B serves as primary element for the following controllers: LMC2: Level limiter (LW) DLR2: 2-point level controller with LW/HW-alarm DLS2: LW- and HW-signaling or signaling of three levels Technical basic equipment Mechanical connection: G ½” (WS27); G 3/4″ (WS36) Electrical connection: Plug connection with screw terminals, traction relief Material – Probe housing: stainless steel – Probe rod: stainless steel – Probe extension: stainless steel – Insulator: PTFE – Plug: polyamid – Sealing ring: soft iron

Category: Electric equipment

Description
Reviews (0)
User manual

Application and function
The level probe EL041 / EL041-B serves as primary element for the following controllers:
LMC2: Level limiter (LW)
DLR2: 2-point level controller with LW/HW-alarm
DLS2: LW- and HW-signaling or signaling of three levels


Technical basic equipment
Mechanical connection: G ½"  (WS27); G 3/4" (WS36)
Electrical connection: Plug connection with screw terminals, traction relief
Material
- Probe housing: stainless steel
- Probe rod: stainless steel
- Probe extension: stainless steel
- Insulator: PTFE
- Plug: polyamid
- Sealing ring: soft iron
